Lightweight, stability, and large dimensions

The aluminum honeycomb structure combines low weight, high rigidity, and the possibility of producing large-format panels.

Lightweight

Large dimensions

Stability and rigidity

Lightweight

The aluminum honeycomb structure enables the production of large-format panels with a low overall weight, making them easier to transport and reducing the load on hinges, guides, and other hardware systems, all of which have a maximum load capacity.

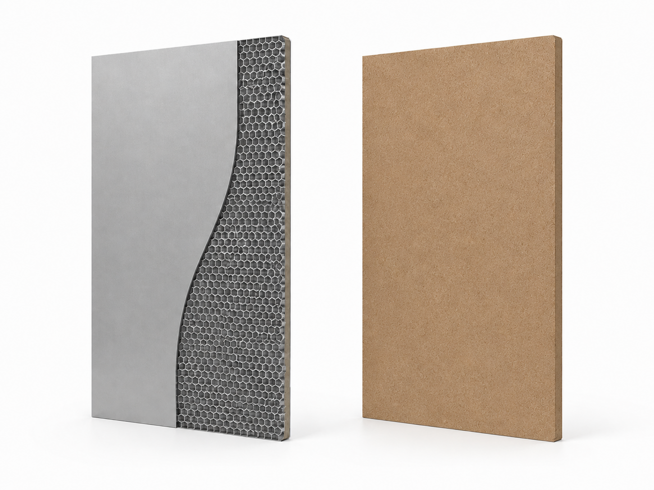

Comparison between an aluminum honeycomb door panel and an MDF panel of the same dimensions.

Aluminum honeycomb panel

MDF panel

Comparison dimensions

900 x 2000 x 40 sp mm

MDF exterior finish, including the edges.

9.4

5.3

Stability and rigidity

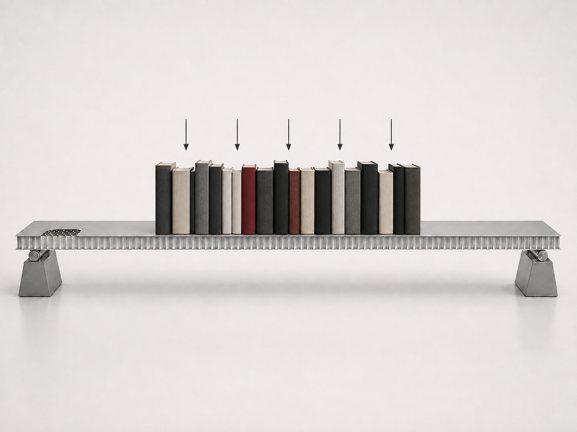

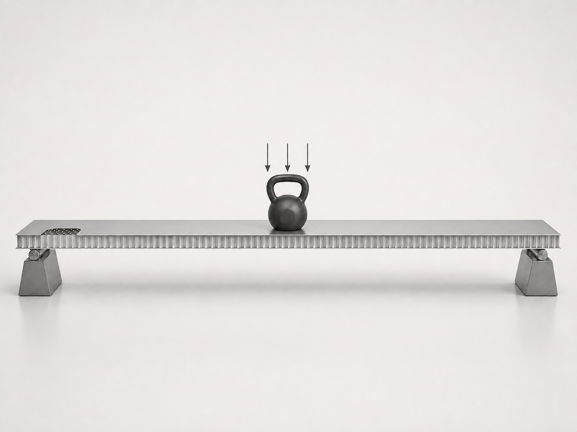

Rigidity and stability are essential to ensure that the panel maintains its geometry and flatness, even when subjected to loads and stresses during use.

To design the panel correctly, it is important to know its intended application, dimensions, support points, expected loads, and fixing methods. This information makes it possible to define the most suitable configuration and structure and to accurately assess its strength and behaviour under stress.

Large dimensions

The actual achievable panel size also depends on the materials selected, particularly the facing materials. Each manufacturer and product range offers different standard sheet sizes, which may affect the final dimensions of the panel.

For this reason, each configuration is assessed according to the required dimensions, performance requirements, and material availability to identify the most suitable solution for the project.

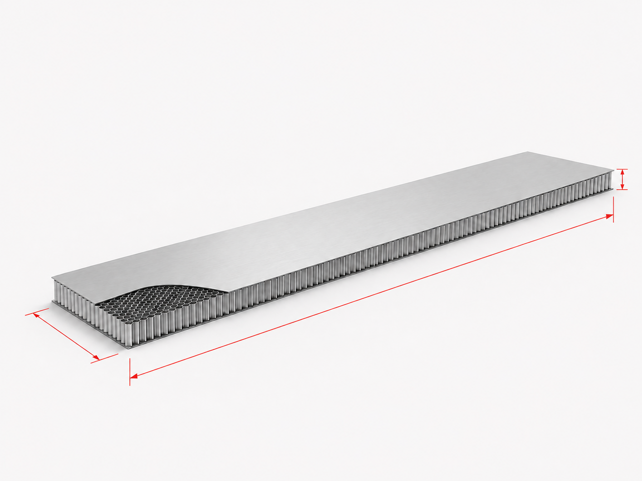

The aluminum honeycomb structure enables the production of large-format panels while maintaining high rigidity, flatness, and stability, even across extensive surfaces.

Standard panels

The panels can be supplied in standard sizes

with thickness on request.

1300 x 3050

1600 x 4200

Custom panels:
Maximum panel dimensions

6000 × 1750 × 100 mm

Do you have

a specific requirement?

Talk to one of our engineers to define the door panel configuration best suited to your application.
