Suspended ceiling panels
Suspended ceiling panels
The aluminum honeycomb structure combines low weight, high rigidity, and the possibility of producing large-format panels.
Ceiling panels manufactured with aluminum honeycomb composite panels are the ideal solution for applications requiring lightweight construction, high stiffness and dimensional stability. The sandwich structure provides excellent flexural rigidity, enabling the production of large-format, thin panels, even with heavy facings or complex geometries.
Large sizes Long-term stability Customisable finishes
Suspended ceiling types
→ Lacquer-ready → Veneered → HPL-clad → Glass and ceramic → Metal
Panels to be lacquered
We make ceiling panels to be lacquered in two solutions, with:
ALUXAPP and ALUXAPP-H, in both cases with frames in Eulithe or phenolic plywood.
-versione-equailizzata.jpeg "massellamento-interno-(2)-versione-equailizzata.jpeg")
Boiserie with lacquered ALUXAPP panels
✔ ALUXAPP-H
✔ ALUXAPP-T
Lacquering on aluminum from 1 to 2 mm THK
surfaces:
sheets with primer from 1 mm
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in wood, metal or ABS.
Lacquering on HDF 1.8 or 6 mm THK (possible processing in thickness)
surfaces: primer-coated sheets
0.5/1 mm + HDF from 1.8 to 6 mm THK
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in wood veneer, metal or ABS.
Which configuration to choose
ALUXAPP-H is suitable for lacquering and is recommended for standard indoor environments without specific humidity concerns.
By using a thicker MDF substrate, custom patterns and designs can also be engraved into the surface according to project specifications.

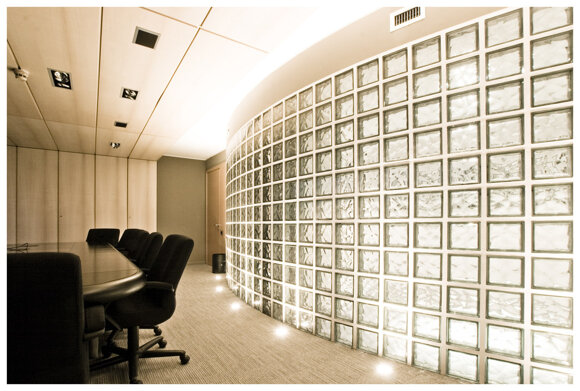

Veneered panels
Veneered ceiling panels manufactured with aluminum honeycomb composite panels combine the natural beauty of wood with a lightweight, stiff and dimensionally stable structure. Thanks to their excellent flexural rigidity, they enable the creation of large-format ceilings with high performance and premium-quality finishes.

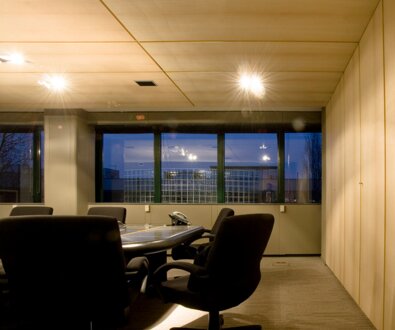

False ceiling in continuity with the boiserie
✔ ALUXAPP-T
✔ ALUXAPP-H
✔ ALUXAPP
Veneered essence on 3 mm THK chipboard
surfaces: sheets with primer
0.5/1 mm + HDF from 1.8 to 6 mm THK
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in essence, metal or ABS.
Veneer directly on aluminum
surfaces:
sheets with 1 mm primer
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in veneer, metal or ABS.
Veneered finish on HDF 1.8 mm THK
surfaces: sheets with primer
0.5/1 mm + HDF from 1.8 to 6 mm THK
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in veneer, metal or ABS.
Which configuration to choose
Choose ALUXAPP-E for applications in humid environments.
ALUXAPP-H is easier to veneer and is suitable for standard environments without specific humidity concerns.
HPL laminate panels
HPL-clad suspended ceiling panels made from aluminium honeycomb composite panels provide durable, hard-wearing surfaces with high aesthetic quality. The laminate can be applied to both sides of the panel or to the visible side only, allowing weight, cost and performance to be optimised according to the project requirements.
✔ ALUXAPP-HDF
✔ ALUXAPP-HDF
Aluminum + HDF Laminate, on both sides
surfaces:
sheets with 0.5 mm Sp primer
+ HPL 0.9 mm SP
___________________________________
frame in phenolic plywood or Eulithe®
___________________________________
edge in ABS, in metal, profiles in
aluminum "T" in aluminum
Aluminum + HDF + HDF Laminate, on one side
surfaces:
sheets with primer 0.5 mm Sp + HDF 1.8 mm
+ HPL 0.9 mm SP
___________________________________
frame in phenolic plywood or Eulithe®
___________________________________
edge in ABS, in metal, profiles in
aluminum "T" in aluminum
Which configuration should you choose?
ALUXAPP-HPL can be clad with HPL laminate on both faces or on one face only. In the latter case, the opposite face can be finished with painted metal sheet or wood veneer, depending on the project’s aesthetic and technical requirements.
Metal-clad panels
We produce ceiling panels to be lacquered in two solutions, with:
ALUXAPP and ALUXAPP-H, in both cases with frames in Eulithe or phenolic plywood.
✔ ALUXAPP
surfaces:
Aluminum, steel or brass 12/10 THK
with different finishes
___________________________________
frame in phenolic plywood or Eulithe®
___________________________________
profile in aluminum 10/10 with metal effect
Why choose this configuration?
The panels are made from composite aluminium honeycomb panels, with the exposed face finished in satin aluminium.
The panels have no perimeter frame; the edges are finished with T-shaped aluminium profiles.
Hardware store

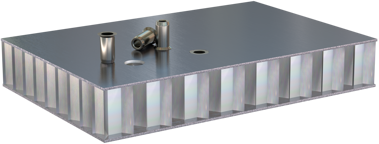

Metric Threaded Inserts
.
Metric threaded inserts are anchored to aluminum skins through a mechanical deformation system of the insert itself. This screwing system is particularly strong and reversible, because the screws can be screwed and unscrewed multiple times
Self-tapping bushing in nylon or steel thread
.
The hangers are screwed to the honeycomb panel through anchoring with steel threads or self-tapping nylon bushings to ensure the necessary hold.
Let’s discuss your project
We work with you to analyse the requirements of your application and develop the most suitable technical solution.
