CNC machining
CNC machining
The aluminum honeycomb structure combines low weight, high rigidity, and the possibility of producing large-format panels.
Composite panels are machined on 5-axis CNC machining centers to produce drilled holes, milled features, pockets, grooves, and complex shapes with high precision. All machining operations are carried out directly on the finished panel.
CNC machining is developed from the customer's drawings and subsequently engineered by our technical department to ensure the required dimensional accuracy and manufacturing quality.
CUSTOMER REQUIREMENTS
& ENGINEERING
Stratigraphic study →
Frame Integration →
Edging →
Coating with laminate →
CNC machining
> Milling
> Drilling
Tool insertion →
Milling
Composite panels can be machined using solid carbide (VHM) cutting tools. The selection of cutting tools and machining parameters depends on the panel facing material and the required geometry, ensuring high precision, excellent surface finish, and maximum productivity.

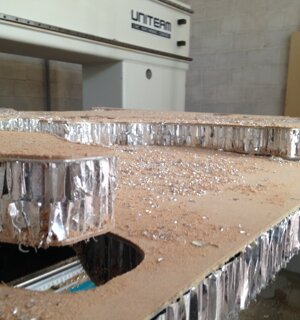

CNC milling on drawing

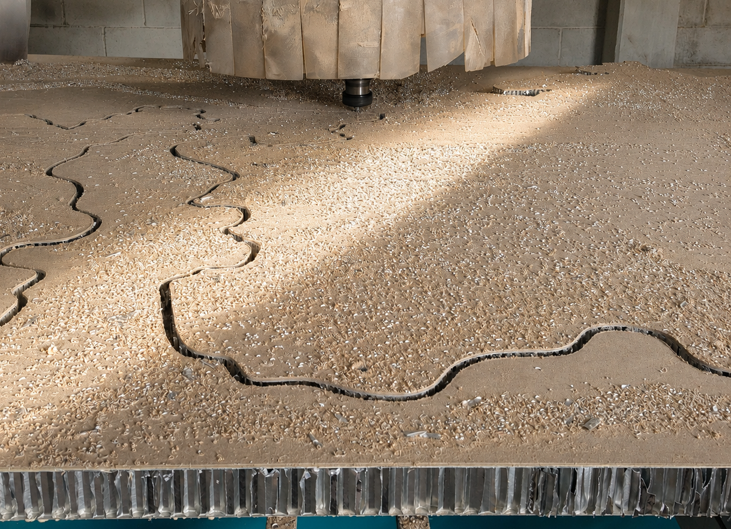

CNC Shaping
Panel thickness processing detail

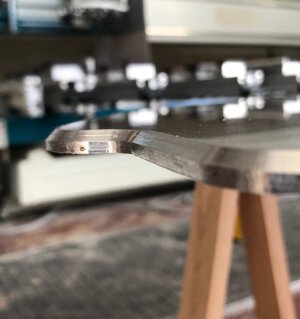

Profile shaping according to drawing
.png "processing of aluminum honeycomb panels")
-versione-equailizzata.jpeg "groove in thickness")

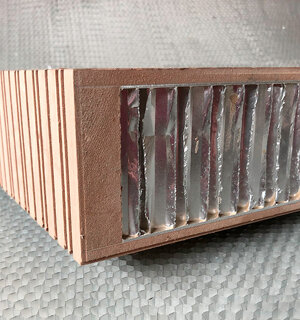

Grooves in thickness
Pocket reduction
Drilling
Sandwich panels can be drilled with traditional metal bits (HSS-twist). If a hole with a diameter greater than 5 mm is required, the panel must be pre-drilled.
Drilling for MA inserts

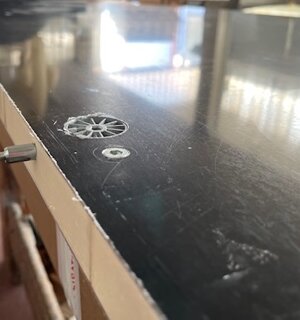

Insertion of mechanical joints
Do you have
a specific requirement?
We engineer frames and solid timber reinforcements according to the specified hardware and operating loads, delivering a component ready for assembly.
