Table panels
Table panels
Tabletops made with aluminum honeycomb composite panels combine lightweight construction, high stiffness and dimensional stability. Ideal for large-format tables with reduced thicknesses, heavy surface finishes or complex geometries, they provide perfectly flat surfaces and excellent bending resistance.
Veneered panels
Veneered tabletops made with aluminum honeycomb composite panels combine the natural beauty of wood with lightweight construction, high stiffness and dimensional stability. The configuration can include solid wood perimeter framing for edge finishing and internal solid wood reinforcements for fixing the supporting structure.
Boiserie with integrated door

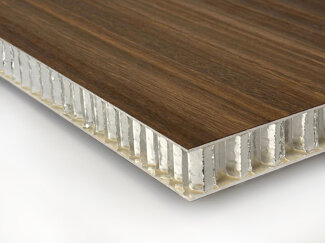

Veneer directly on aluminum
surfaces:
primer-coated sheets 1 mm thick
frame
in Eulithe® or phenolic plywood
edge in veneer, metal or ABS.
ALUXAPP is chosen for applications in humid environments or where there are problems with lacquering aluminum directly.
- Threaded insert
Panel
✔ ALUXAPP
Veneered finish on HDF 1.8 mm
surfaces: sheets with primer
0.5/1 mm + HDF from 1.8 to 6 mm THK
frame
in Eulithe® or phenolic plywood
edge in veneer, metal or ABS.
Panel
✔ ALUXAPP-H
ALUXAPP-H can be lacquered more easily, it is suitable for normal environments that do not have particular humidity problems.
- Nylon insert
- Threaded insert + washer
Veneered wood on 3 mm chipboard
surfaces: primed sheets
0.5/1 mm + HDF from 1.8 to 6 mm thick
frame
in Eulithe® or phenolic plywood
edge in wood, metal or ABS.
ALUXAPP-H can be lacquered more easily, it is suitable for normal environments that do not have particular humidity issues.
- Nylon insert
- Threaded insert + washer
Panel
✔ ALUXAPP-T
Panels to be lacquered
Lacquer-ready tabletops made with aluminum honeycomb composite panels are ideal for large-format tables or tables with reduced thicknesses. They provide perfectly flat surfaces, high stiffness and dimensional stability, enhancing the quality of the lacquered finish.
Lightweight table tops even with very thick thicknesses
Pre-painted sheets RAL color
surfaces:
pre-painted sheets 1 / 1.5 mm thick
frame
in Eulithe® or phenolic plywood
edge in wood, metal or ABS.
Panel
✔ ALUXAPP-V
ALUXAPP is chosen for applications in humid environments or where there are problems with lacquering aluminum directly.
- Threaded insert
Lacquering on HDF 1.8 or 6 mm (possible machining in thickness)
surfaces: sheets with primer
0.5/1 mm + HDF from 1.8 to 6 mm TH
frame
in Eulithe® or phenolic plywood
edge in wood, metal or ABS.
ALUXAPP-H can be lacquered more easily, it is suitable for normal environments that do not have particular humidity problems.
- Nylon insert
- Threaded insert + washer
Panel
✔ ALUXAPP-H
HPL laminate panels
HPL-clad tabletops made with aluminum honeycomb composite panels provide perfectly flat surfaces, high stiffness and dimensional stability. They are ideal for large-format tables used in applications requiring excellent wear resistance and easy maintenance.
Aluminum + HDF Laminate, on one or both sides
surfaces:
sheets with primer 0.5 mm thick
+ HPL 0.9 mm thick
frame in phenolic plywood or Eulithe®
edge in ABS, in metal, profiles in
aluminum "T" in aluminum
- It is possible to provide a layer of cork for acoustic insulation.
- Threaded insert
- Threaded bushing
Panel
✔ ALUXAPP-HPL
Aluminum + HDF + HDF Laminate, on one or both sides
surfaces:
sheets with primer 0.5 mm Sp + HDF 1.8 mm
+ HPL 0.9 mm SP
frame in phenolic plywood or Eulithe®
edge in ABS, in metal, profiles in
aluminum "T" in aluminum
- It is possible to provide a layer of cork for acoustic insulation.
- Threaded insert
- Threaded bushing
Panel
✔ ALUXAPP-H.HPL
Metal tops
Metal-finish tabletops made with aluminum honeycomb composite panels allow the application of sheet metal while maintaining lightweight construction, high stiffness and dimensional stability. They are ideal for large-format tables with perfectly flat surfaces and a high-quality aesthetic finish.
.jpeg "ballasting aluminum panel")
.
surfaces:
primed sheets
frame with phenolic plywood frame,
solid aluminum or without frame.
edge in metal, profiles in
aluminum "T" in aluminum
Panel
✔ ALUXAPP

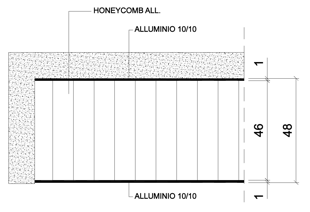

Support for marble tops
Marble-clad tabletops made with aluminum honeycomb composite panels provide a lightweight, rigid and dimensionally stable support. They are ideal for marble slab applications, reducing the risk of deformation caused by stresses generated by the bonding adhesives.
.
surfaces:
in GRP
frame
edge
Panel
✔ ALUXAPP-GRP
Do you have a specific requirement?
We design the panel that best suits your application.
