Suspended ceiling panels

Home <

Applications <

Suspended ceiling panels

The suspended ceiling panels made with aluminum honeycomb technology are extremely lightweight and resistant to bending, and solve the problems of creating large and thin panels with a very heavy outer surface or a special geometry.

Veneered panels

Panels for suspended ceilings can be made in three versions: ALUXAPP-E, ALUXAPP-H, and ALUXAPP-T

Aluminum suspended ceiling panels coated in wood veneer

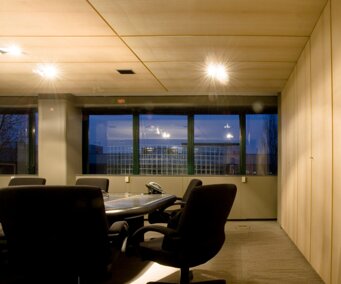

Suspended ceiling panels in aluminum honeycomb covered with wood veneer

False ceiling in continuity with the boiserie

Veneer directly on aluminum

surfaces:
primed sheets from 1 mm

___________________________________
frame
in Eulithe® or phenolic plywood

___________________________________
edge in veneer, metal or ABS.

Suspended ceiling panel in:

ALUXAPP

ALUXAPP is chosen for applications in humid environments or where there are problems with lacquering aluminum directly.
- Threaded insert

Veneered finish on HDF 1.8 mm

surfaces: primed sheets

0.5/1 mm + HDF from 1.8 to 6 mm THK

___________________________________
frame
in Eulithe® or phenolic plywood

___________________________________
edge in veneer, metal or ABS.

Suspended ceiling panel in:

ALUXAPP-H

ALUXAPP-H can be lacquered more easily, it is suitable for normal environments that do not have particular humidity problems.
- Nylon insert
- Threaded insert + washer

Veneered wood on 3 mm chipboard

surfaces: primed sheets

0.5/1 mm + HDF from 1.8 to 6 mm THK

___________________________________
frame
in Eulithe® or phenolic plywood

___________________________________
edge in wood, metal or ABS.

Aluminum honeycomb panel with chipboard skin

ALUXAPP-H can be lacquered more easily, it is suitable for normal environments that do not have particular humidity issues.
- Nylon insert
- Threaded insert + washer

Suspended ceiling panel in :

ALUXAPP-T

Panels to be lacquered

We make ceiling panels to be lacquered in two solutions, with:

ALUXAPP and ALUXAPP-H, in both cases with frames in Eulithe or phenolic plywood.

Aluminum honeycomb panel with HDF skin edged

Boiserie with lacquered ALUXAPP panels

Lacquering on aluminum of 1 / 1.5 / 2 mm

surfaces:
sheets with primer of 1 mm

___________________________________
frame
in Eulithe® or phenolic plywood

___________________________________
edge in wood, metal or ABS.

ALUXAPP is chosen for applications in humid environments or where there are problems with lacquering aluminum directly.
- Threaded insert

Boiserie panel in:

ALUXAPP

Lacquering on HDF 1.8 or 6 mm (possible processing in thickness)

surfaces: sheets with primer

0.5/1 mm + HDF from 1.8 to 6 mm THK

___________________________________
frame
in Eulithe® or phenolic plywood

___________________________________
edge in wood, metal or ABS.

ALUXAPP-H can be lacquered more easily, it is suitable for normal environments that do not have particular humidity issues.
- Nylon insert
- Threaded insert + washer

Boiserie panel in :

ALUXAPP-H

HPL laminate panels

ALUXAPP-HPL with Eulithe frame is used for applications in particularly humid environments such as swimming pools, bathrooms, etc.

Whereas ALUXAPP-H.HPL with plywood frame is for normal environments that do not have particular humidity issues.

With HPL laminate on both sides or on one side only.

Aluminum + HDF Laminate, on one or both sides

surfaces:
sheets with primer 0.5 mm thick
+ HPL 0.9 mm thick

___________________________________
frame in phenolic plywood or Eulithe®
___________________________________
edge in ABS, in metal, profiles in

aluminum "T" in aluminum

- It is possible to provide a layer of cork for sound insulation.
- Threaded insert
- Threaded bushing

Boiserie panel in:

ALUXAPP-HPL

Aluminum + HDF + HDF Laminate, on one or both sides

surfaces:
sheets with primer 0.5 mm Sp + HDF 1.8 mm
+ HPL 0.9 mm SP

___________________________________
frame in phenolic plywood or Eulithe®
___________________________________
edge in ABS, in metal, profiles in

aluminum "T" in aluminum

Aluminum honeycomb panel with HPL skin on both sides

- It is possible to provide a layer of cork for sound insulation.
- Threaded insert
- Threaded bushing

Boiserie panel in:

ALUXAPP-H.HPL

Metal-clad panels

We produce ceiling panels to be lacquered in two solutions, with:

ALUXAPP and ALUXAPP-H, in both cases with frames in Eulithe or phenolic plywood.

surfaces:
Aluminum, steel or brass 12/10

with different finishes

___________________________________
frame in phenolic plywood or Eulithe®
___________________________________
profile in aluminum 10/10 with metal effect

Steel inserts

Doors in :

ALUXAPP

Hardware store

insertion of hardware in aluminum honeycomb panels

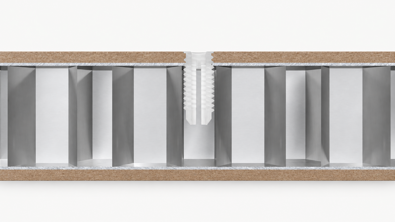

Self-tapping bushing in nylon or steel thread

The hangers are screwed to the honeycomb panel through anchoring with steel threads or self-tapping nylon bushings to ensure the necessary hold.

Metric Threaded Inserts

Metric threaded inserts are anchored to aluminum skins through a mechanical deformation system of the insert itself. This screwing system is particularly strong and reversible, because the screws can be screwed and unscrewed multiple times

Do you have a specific requirement?

We design the panel that best suits your application.
