Boiserie panels
Boiserie panels
ALUXAPP panels are excellent for creating large boiserie, because of:
- Lightness and rigidity of all parts of the system and ease of transport
- Aesthetic versatility in finishing surfaces
- Flatness with opening systems (e.g. doors), for linear continuity
- Possibility of soundproofing the room

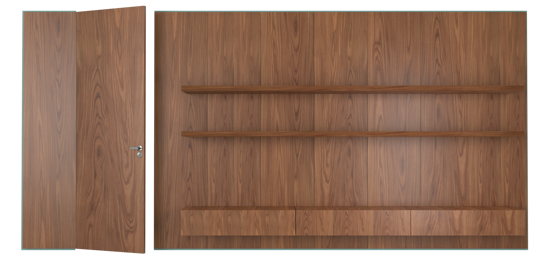

Boiserie with integrated door

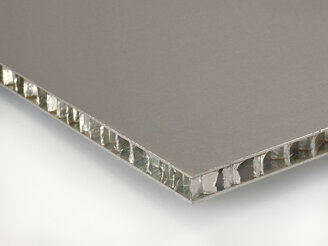

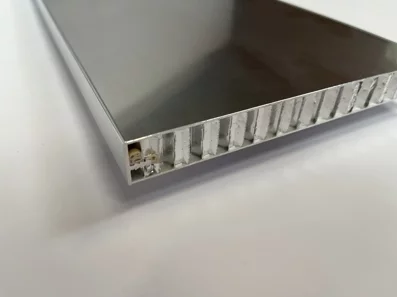

panel stratigraphy with ALUXAPP technology
Insertion of perimeter battening for hardware attachment
BOISERIE PANEL SIZE
X = width, up to 1400 mm
Y = height, up to 4000 mm
Z = thickness, from 8 to 100 mm
Veneered panels
We produce boiserie panels to be veneered in three solutions, with:
with ALUXAPP, the veneer is applied directly on aluminum, for applications in humid environments,
with ALUXAPP-H the veneer is on 1.8 mm thick HDF and
with ALUXAPP-T the veneer is on 3 mm thick chipboard, for environments without particular humidity problems
Boiserie with integrated door
Veneer directly on aluminum
surfaces:
sheets with 1 mm primer
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in veneer, metal or ABS.
Boiserie panel in:
ALUXAPP
ALUXAPP is chosen for applications in humid environments or where there are problems with lacquering aluminum directly.
- Threaded insert
Veneered essence on HDF 1.8 mm
surfaces: primer-coated sheets
0.5/1 mm + HDF from 1.8 to 6 mm THK
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in essence, metal or ABS.
ALUXAPP-H can be lacquered more easily, it is suitable for normal environments that do not have particular humidity problems.
- Nylon insert
- Threaded insert + washer
Boiserie panel in :
ALUXAPP-H
Veneered wood on 3 mm chipboard
surfaces: primed sheets
0.5/1 mm + HDF from 1.8 to 6 mm THK
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in wood veneer, metal or ABS.
ALUXAPP-H can be lacquered more easily, it is suitable for normal environments that do not have particular humidity issues.
- Nylon insert
- Threaded insert + washer
Boiserie panel in :
ALUXAPP-T
Panels to be lacquered
We make boiserie panels to be lacquered in two solutions, :
ALUXAPP for applications in humid environments
ALUXAPP-H in environments without particular humidity problems.

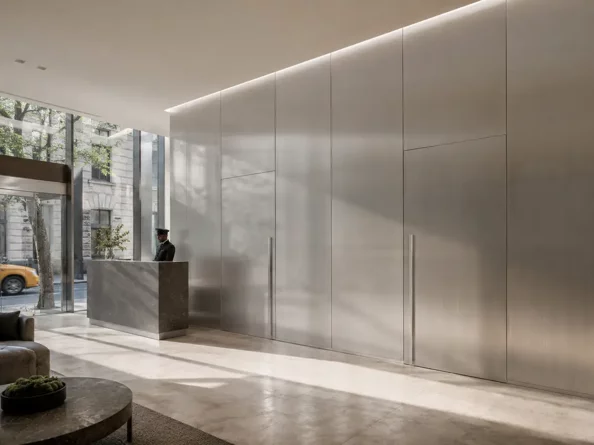

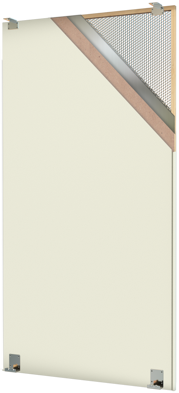

Boiserie with lacquered ALUXAPP panels
Lacquering on aluminum of 1 / 1.5 / 2 mm
surfaces:
sheets with primer of 1 mm
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in wood, metal or ABS.
Boiserie panel in:
ALUXAPP
ALUXAPP is chosen for applications in humid environments or where there are problems with lacquering aluminum directly.
- Threaded insert
Lacquering on HDF 1.8 or 6 mm (possible processing in thickness)
surfaces: sheets with primer
0.5/1 mm + HDF from 1.8 to 6 mm THK
___________________________________
frame
in Eulithe® or phenolic plywood
___________________________________
edge in wood, metal or ABS.
ALUXAPP-H can be lacquered more easily, it is suitable for normal environments that do not have particular humidity problems.
- Nylon insert
- Threaded insert + washer
Boiserie panel in:
ALUXAPP-H

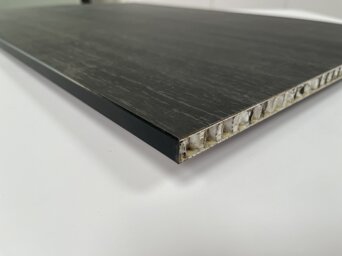

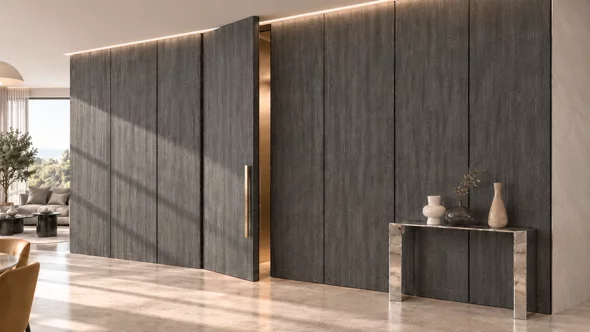

HPL laminate panels
ALUXAPP-HPL is used with Eulithe frame for applications in particularly humid environments such as swimming pools, bathrooms, etc.
Whereas ALUXAPP-H.HPL with plywood frame is for normal environments that do not have particular humidity issues.
With HPL laminate on both sides or only one side.
Aluminum + HDF Laminate, on one or both sides
surfaces:
sheets with 0.5 mm Sp primer
+ HPL 0.9 mm SP
___________________________________
frame in phenolic plywood or Eulithe®
___________________________________
edge in ABS, in metal, profiles in
aluminum "T" in aluminum
- It is possible to provide a layer of cork for sound insulation.
- Threaded insert
- Threaded bushing
Boiserie panel in:
ALUXAPP-HPL
Aluminum + HDF + HDF Laminate, on one or both sides
surfaces:
sheets with primer 0.5 mm Sp + HDF 1.8 mm
+ HPL 0.9 mm SP
___________________________________
frame in phenolic plywood or Eulithe®
___________________________________
edge in ABS, in metal, profiles in
aluminum "T" in aluminum
- It is possible to provide a layer of cork for acoustic insulation.
- Threaded insert
- Threaded bushing
Boiserie panel in:
ALUXAPP-H.HPL
Tool

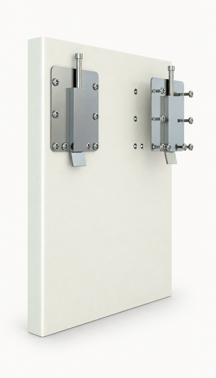

Boiserie hanger
.
The hangers for boiserie can be screwed in using the threaded insert technique.

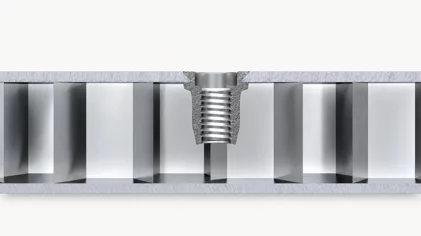

Self-tapping bushing in nylon or steel thread
.
The hangers are screwed to the honeycomb panel through anchoring with steel threads or self-tapping nylon bushings to ensure the necessary hold.
Do you have a specific requirement?
We design the panel that best suits your application.
