Base panels
Base Composite panels
Our composite panels are designed and manufactured according to the requirements of each application, combining lightweight construction, rigidity, strength and integrated machining.
To meet different application requirements, we develop:
✔ Standard lay-up configurations, developed for the most common applications and customizable in thickness, dimensions and machining.
✔ Custom lay-up configurations, engineered when a standard configuration does not meet the specific requirements of the application.
Base Composite panels
Main Panel
The base panel from which the ALUXAPP range is developed.
ALUXAPP
.
The core panel for structural applications.
Core
Aluminum honeycomb
Skins
Aluminum 5/10 or 10/10 or combined
Facing Variants
ALUXAPP-T
.
Panel for wood veneer application
Core
Aluminum honeycomb
Internal skins
Aluminum 5/10 or 10/10
External skins
HDF 1.8 - 3 or 6 mm
ALUXAPP-H
.
Panel for lacquer or veneer finishes
Core
Aluminum honeycomb
Internal skins
Aluminum 5/10 or 10/10
External skins
HDF 1.8 - 3 or 6 mm
ALUXAPP-E
.
Panel with wood veneer on aluminum
Core
Aluminum honeycomb
Internal skins
aluminum 5/10 or 10/10
External skins
HDF 1.8 - 3 or 6 mm
ALUXAPP-HPL
Panel with HPL laminate on aluminum
Core
Aluminum honeycomb
Internal skins
aluminum 5/10 or 10/10
External skins
HDF 1.8 - 3 or 6 mm
ALUXAPP-V
.
Panel with pre-painted aluminum
Core
Aluminum honeycomb
Internal skins
aluminum 5/10 or 10/10
External skins
HDF 1.8 - 3 or 6 mm
ALUXAPP-S
.
Veneer-ready sound-insulating panel
Core
Aluminum honeycomb
Internal skins
Aluminum 5/10 or 10/10
External skins
HDF 1.8 - 3 or 6 mm
Special applications
ALUXAPP-S.VTR1
One side with a wear-resistant surface and an elastic joint.
Core
Aluminum honeycomb
Internal skins
Aluminum 5/10 or 10/10
External skins
HDF 1.8 - 3 or 6 mm
ALUXAPP-S.VTR2
Both sides with wear-resistant surfaces and elastic joints.
Core
Aluminum honeycomb
Internal skins
Aluminum 5/10 or 10/10
External skins
HDF 1.8 - 3 or 6 mm
ALUXAPP-VTR1
Fiberglass facings
Core
Aluminum honeycomb
Internal skins
Aluminum 5/10 or 10/10
External skins
HDF 1.8 - 3 or 6 mm
ALUXAPP-GPR
GRP facings
Core
Aluminum honeycomb
Internal skins
Aluminum 5/10 or 10/10
External skins
HDF 1.8 - 3 or 6 mm
SEAAPP-VTR
Nomex® honeycomb core with fiberglass facings
Core
Aluminum honeycomb
Internal skins
Aluminum 5/10 or 10/10
External skins
HDF 1.8 - 3 or 6 mm
Base Composite panels
Every new project begins with the application requirements.
Through our lay-up engineering process, our technical team analyzes the application and develops the most appropriate panel configuration, selecting materials, core, facings and machining operations to achieve the required performance.
Skins
Honeycomb core
Explore the Panel Lay-up Study →
Overall thickness
Our value lies not in combining materials, but in engineering the panel configuration best suited to your application.
semi-finished panels
It is not just a material; it is an engineered component developed to meet the technical requirements defined with the customer, customized in its layup, dimensions, and machining.
Examples of Custom Configurations
Some applications require panel lay-up configurations that go beyond the standard range of base panels.
Below are a few examples developed to meet specific project requirements.

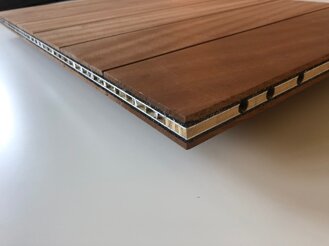

Panel with Solid Wood
Core
Aluminum honeycomb
Internal skins
0.5 mm Aluminium + 3 mm Elastic Joint
External skins
Solid wood

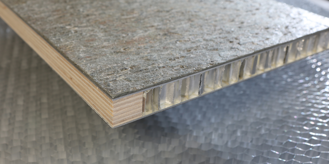

Panel with Thin Stone
Core
Aluminum honeycomb
Internal skins
Aluminum 5/10
External skins
Thin stone 3 mm

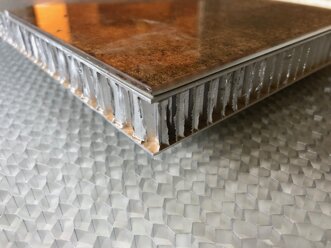

Panel with Glass or Ceramic
Core
Aluminum honeycomb
Internal skins
Aluminum 5/10 or 10/10
External skins
Glass or Ceramic
These are just a few examples. Each panel lay-up is engineered according to the facing materials, the required performance and the planned machining operations.
Do you have
a specific requirement?
Talk to one of our engineers to define the door panel configuration best suited to your application.
